HE 1000/2000/3000

Lifting devices with electrohydraulic drive for large load carriers and containers up to 3,000 kg

Catalog page (PDF)
HE 1000

The most important facts in brief:

  • Particularly suitable for holding pallets and large containers.
  • Load capacity, depending on the model, up to 3,000 kg.
  • Low-maintenance electrohydraulic drive.
  • Stepless adjustment to the desired ergonomic working height.
  • Available in a stationary design.
  • Optional with rotary or special platforms and light scanners for position sensing (special equipment).
  • Low-maintenance and trouble-free operation thanks to high quality, robust components.
  • Safety contact strip as special equipment available.

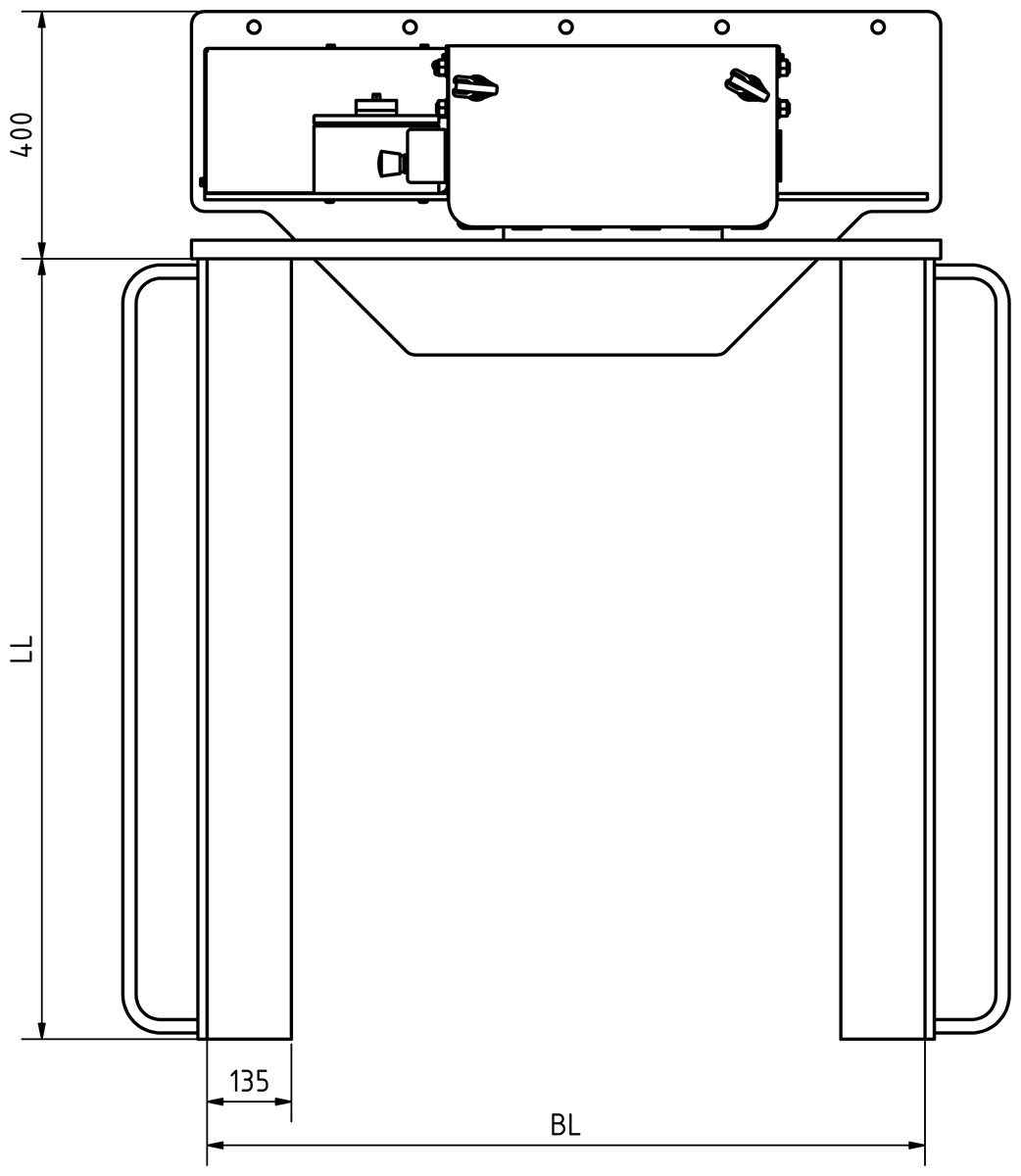

Technical specifications

Device type Load capacity
(in kg)		 Load receptacle (in mm)
BL		 Load receptacle (in mm)
LL		 Loading direction Loading height
(in mm)		 Useful height
(in mm)		 Mobile
available
HE 1000 1.000 850/1.050 1.250 from the front 80/150 600 not
HE 1000 R/L 1.000 1.250 850/1.050 side loading (R/L) 150 600 not
HE 2000 2.000 850/1.050 1.250 from the front 80/150 600 not
HE 2000 R/L 2.000 1.250 850/1.050 side loading (R/L) 150 600 not
HE 3000 3.000 850/1.050 1.250 from the front 80/150 600 not
HE 3000 R/L 3.000 1.250 850/1.050 side loading (R/L) 150 600 not

Power ratings: 400 V/50 Hz, 16 A, 5-pole
Paint: RAL 7035/7016

Fields of application

  • Lifting of large-volume carriers in the automotive industry
  • Manual workplaces
  • Assembly workplaces

Product highlights

  • Load holders can be adapted according to customer requirements
  • Compact design
  • Stepless adjustable via dead man’s switch

Do you still have questions about our lifting and tilting devices?
Then simply contact us!

Get in touch
