NEE 511–519

Compact and functional dumping devices up to 2,000 kg with electrohydraulic drive for safe work processes and increased productivity

Katalogseite (PDF)

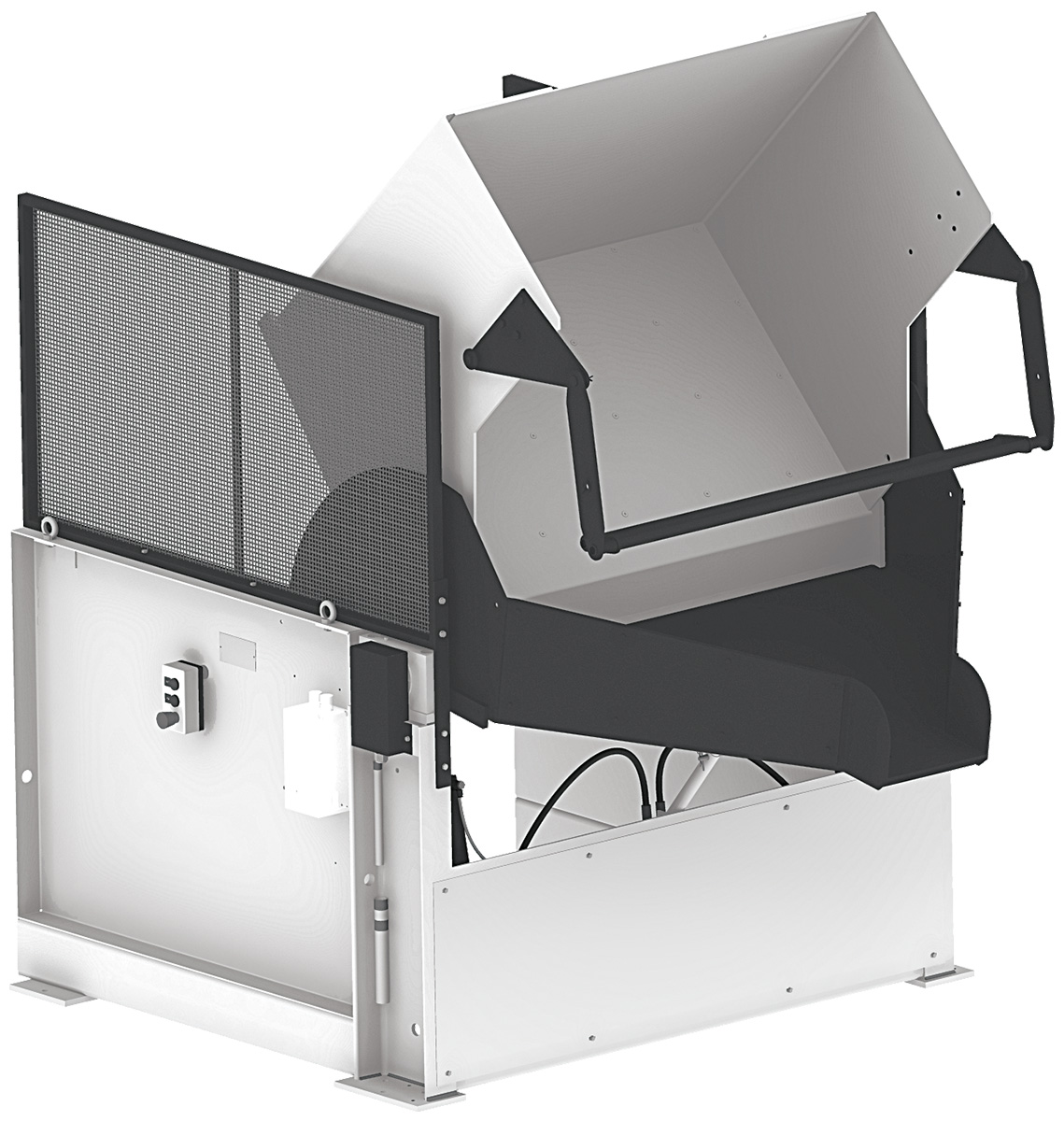

NEE 511
NEE 511
NEE 511
NEE 511
NEE 511
NEE 511
NEE mit LAM als Schütte
NEE mit LAM als Schütte
NEE mit LAM als Schütte
NEE mit LAM als Schütte

The most important facts in brief:

  • Electrohydraulic drive.
  • Maximum tilt angle: 135°.
  • Available in stationary or mobile version
  • Low-maintenance and trouble-free operation thanks to high quality, robust components.
  • Pouring width: 400 mm.
  • Dumping height: 750 mm with adjustable chute on the base frame, 1,050 mm with load carrier as chute.
  • Optional versions are possible, such as electrically lockable wing doors, manual dispensing flap, manual slides at the dumping chute, pouring liner, vibration unit and bonding plates at the dumping chute.

Technical specifications

Device type Load capacity
(in kg)		 Load receptacle
(in mm)
BL		 Load receptacle
(in mm)
LL		 Total size
(in mm)
GB		 Total size
(in mm)
GL		 Total size
(in mm)
GH		 Loading height
(in mm)		 Dumping height
(in mm)		 Mobile
available
NEE 511 2.000 1.300 900 1.710 1.930 2.950 40 750 check
NEE 512 2.000 1.300 1.150 1.710 2.050 3.150 40 750 check
NEE 514 2.000 920 900 1.324 1.930 2.950 40 750 check
NEE 515 2.000 1.130 900 1.534 1.930 2.950 40 750 check
NEE 517 1.500 920 1.350 1.324 2.280 3.300 40 750 check
NEE 519 1.500 1.130 1.350 1.534 2.280 3.200 40 750 check

Power ratings: 400 V/50 Hz, 16 A, 5-pol.
Paint: RAL 7035/7016

Fields of application

  • Stamping plants
  • Loading systems
  • Electroplating
  • Material feed and separation
  • Transfer of liquids

Product video

Product highlights

  • Stepless adjustment of the tilt angle
  • Semi-automatic securing bracket for container holding
  • Dumping tilt (Dumping height) can be set manually
