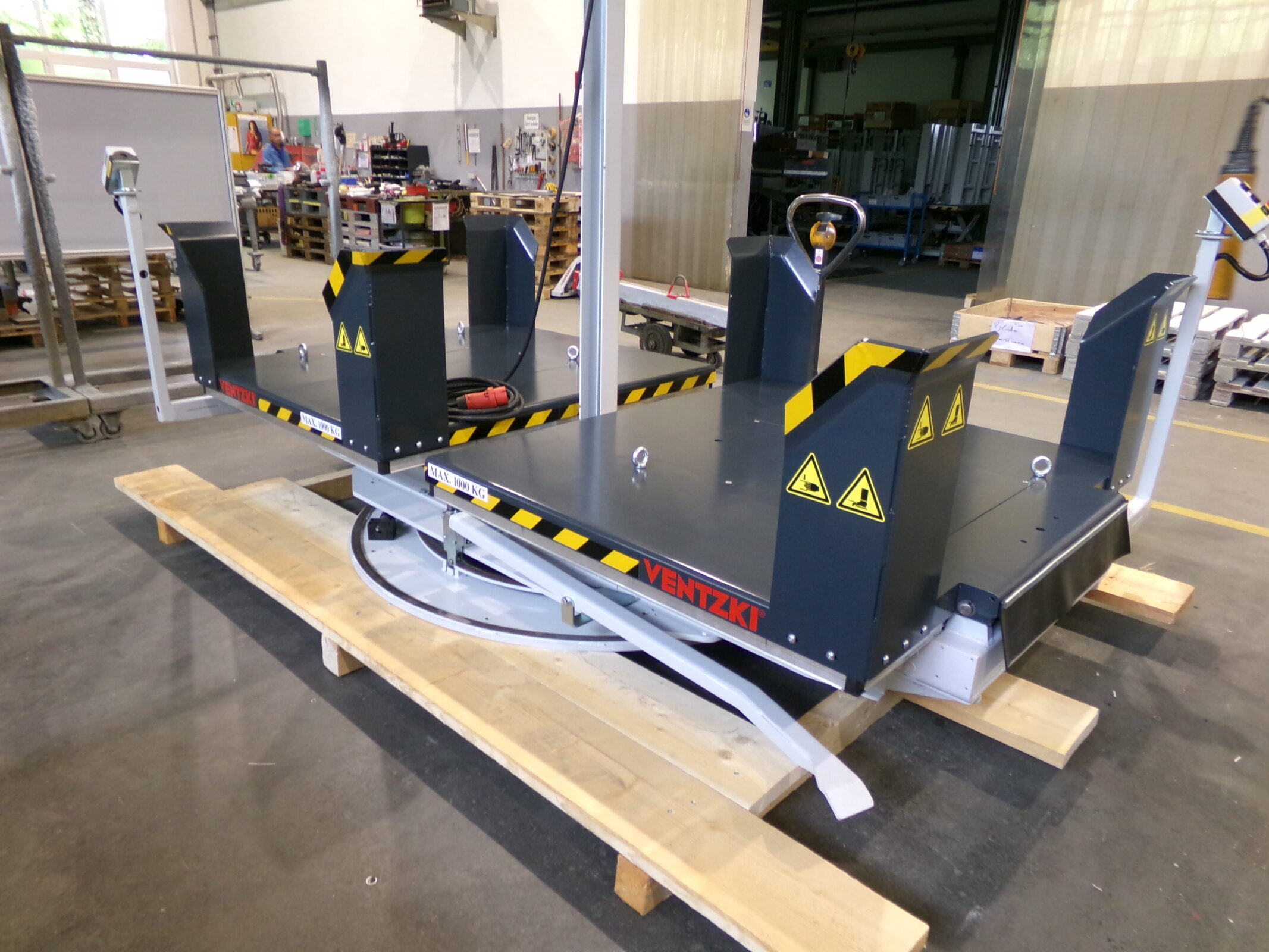

Double tilting devices on rotating platform

Stationary rotary table with 2x container tilting device NE 320-113-D

The most important facts in brief:

  • Electro-hydraulic drive for two tilting platforms.
  • Two mounted tilting platforms, 45° tilt possible.
  • Rotating device locks manually at 0° or 180°.
  • Only available in stationary version.
  • Low-maintenance and low-failure operation thanks to high-quality, robust components.
  • Control by hand switch, permanently mounted on the device, dead man’s control.
  • Length of supply cable: 5 m.
  • Loading with forklift.
  • Platform cover on smooth sheet metal.
  • Stops for containers L 1,400 mm x W 1,200 mm x H 758 mm.
  • Maximum load per tilting unit 1,000 kg.
  • The expected torsional forces are approx. 150 N.

Technical specifications

Device type Platform size 1
(in mm)
Platform size 2
(in mm)
Load capacity
(in kg)
Loading height
(in mm)
Locking mechanism
NE 320-113-D 1.500 x 1.300 1.500 x 1.300 1.000 430 1 x 180°

Power ratings: 400 V/50 Hz, 16 A, 5-pol. EN 60309-2.
Paint: RAL 7035 / 7016.

Fields of application

  • Employment on the two-container principle
  • For assembly workstations

Product highlights

  • Rotating platform with 180° locking mechanism
  • Container platform adjustable in inclination, 45°
