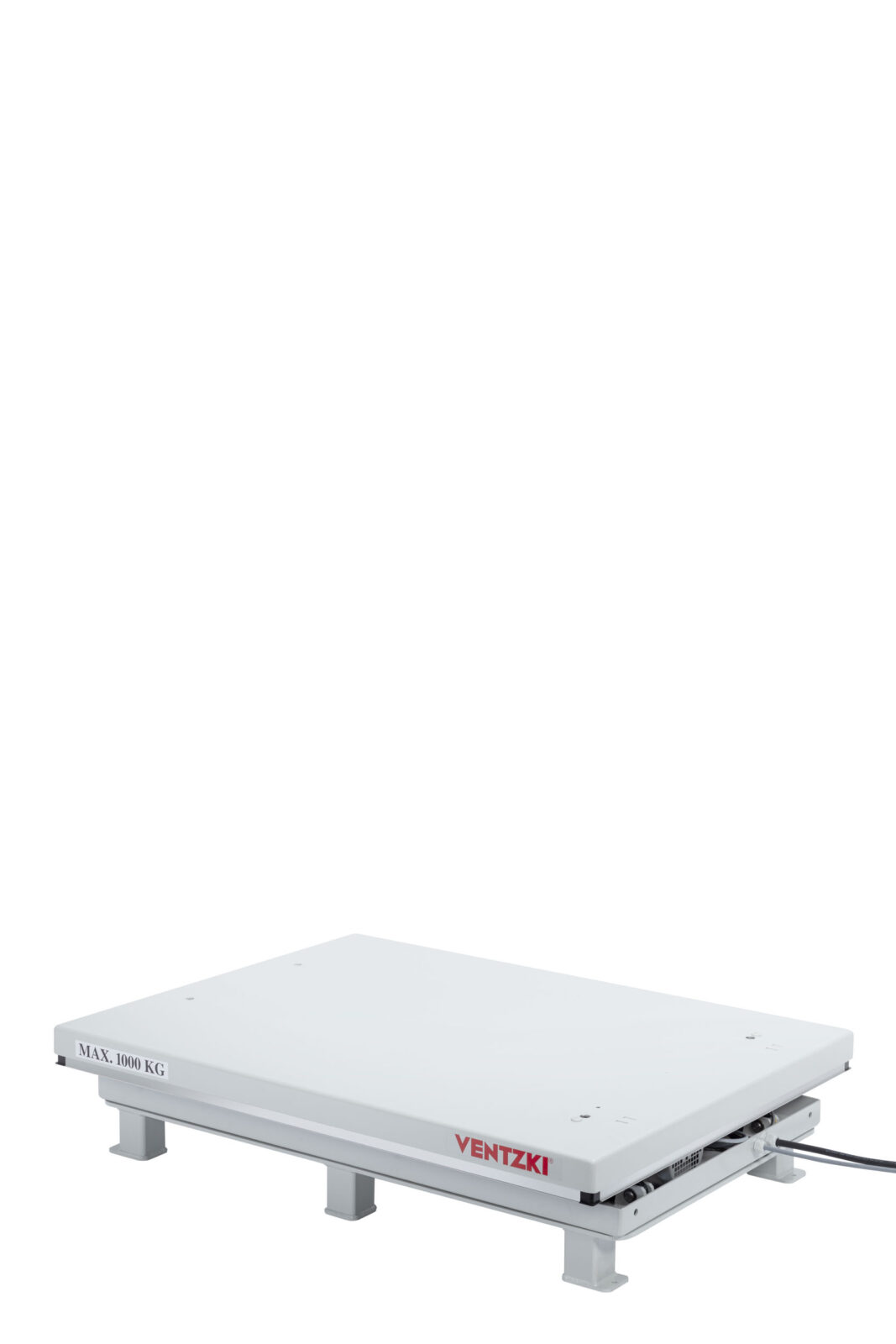

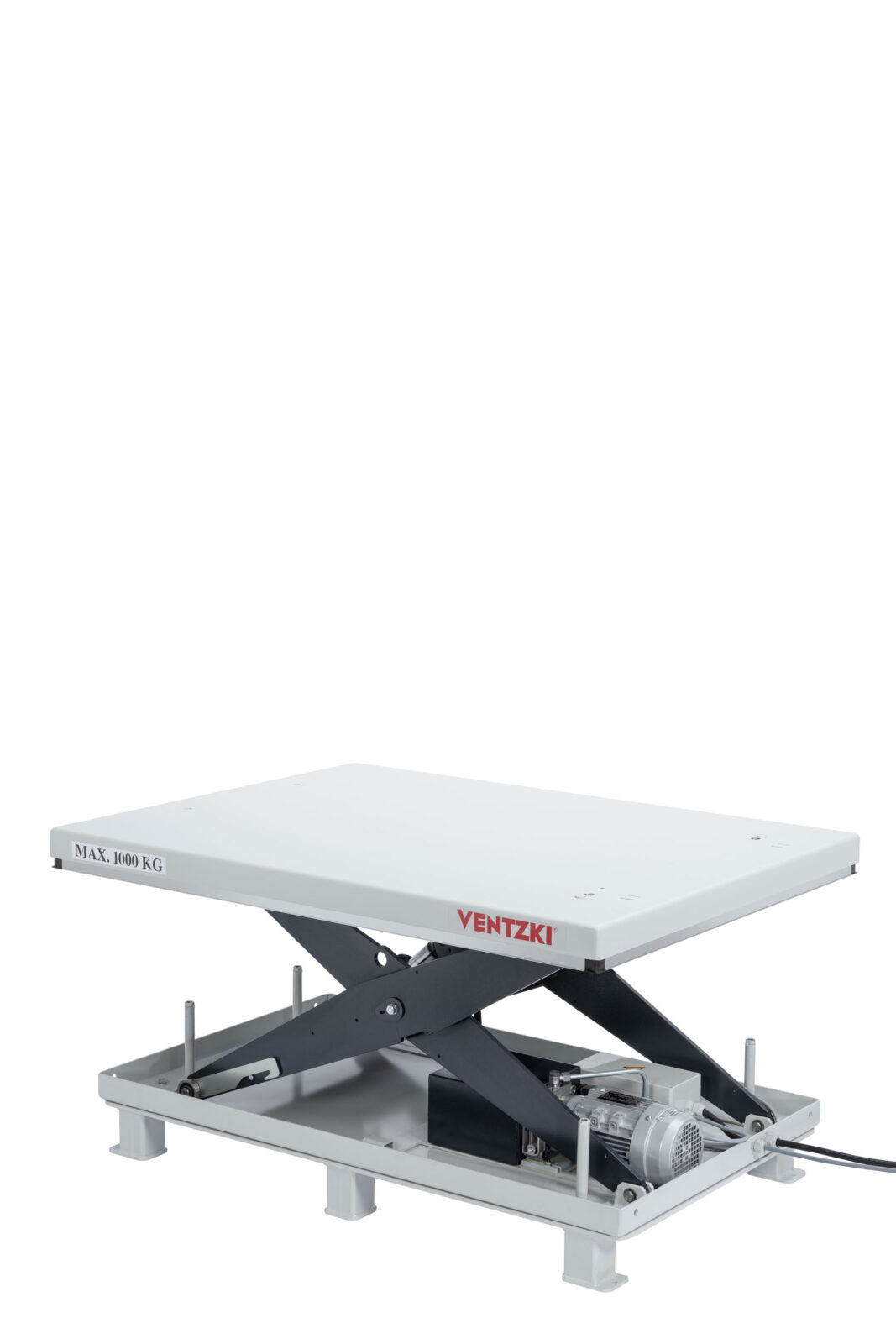

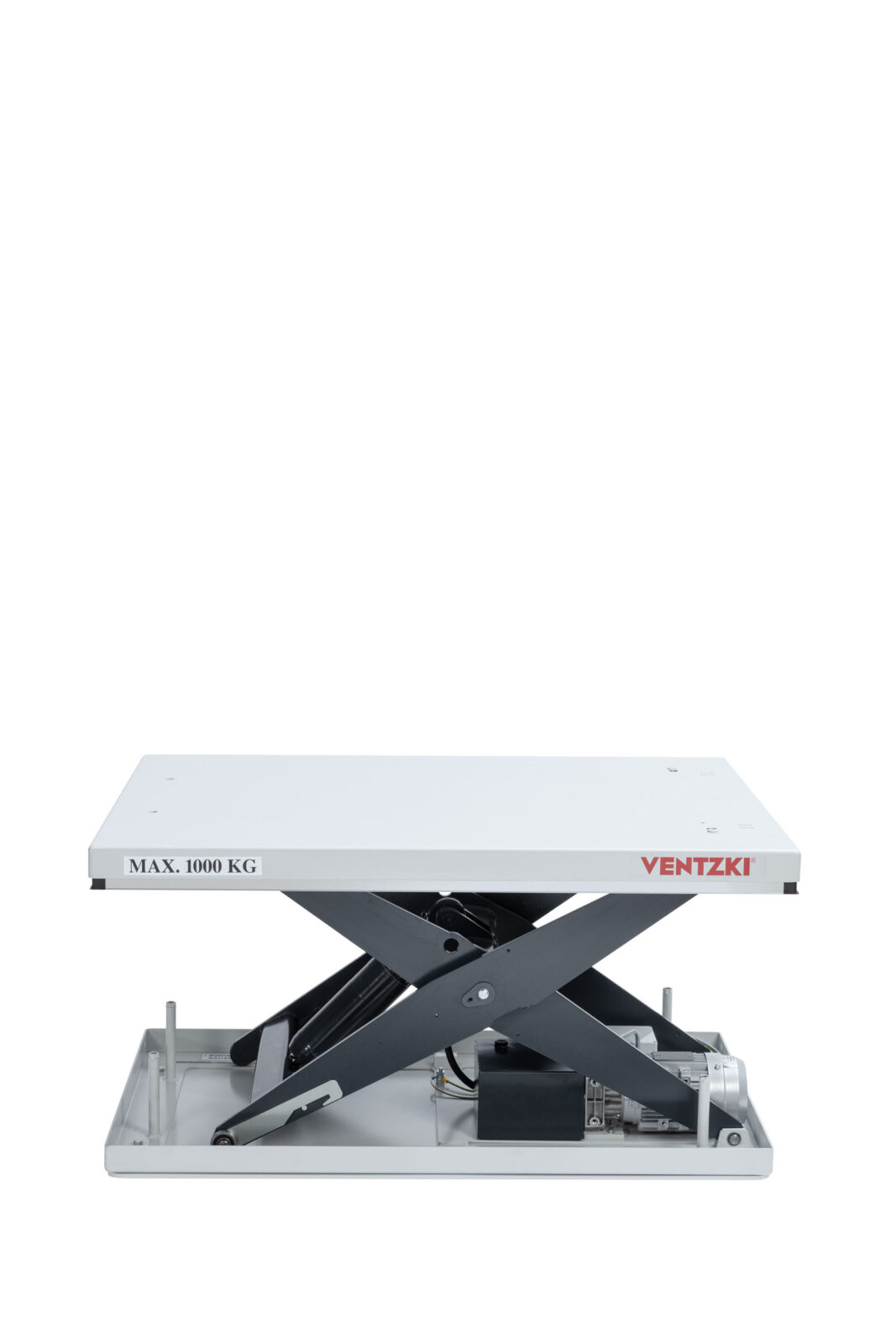

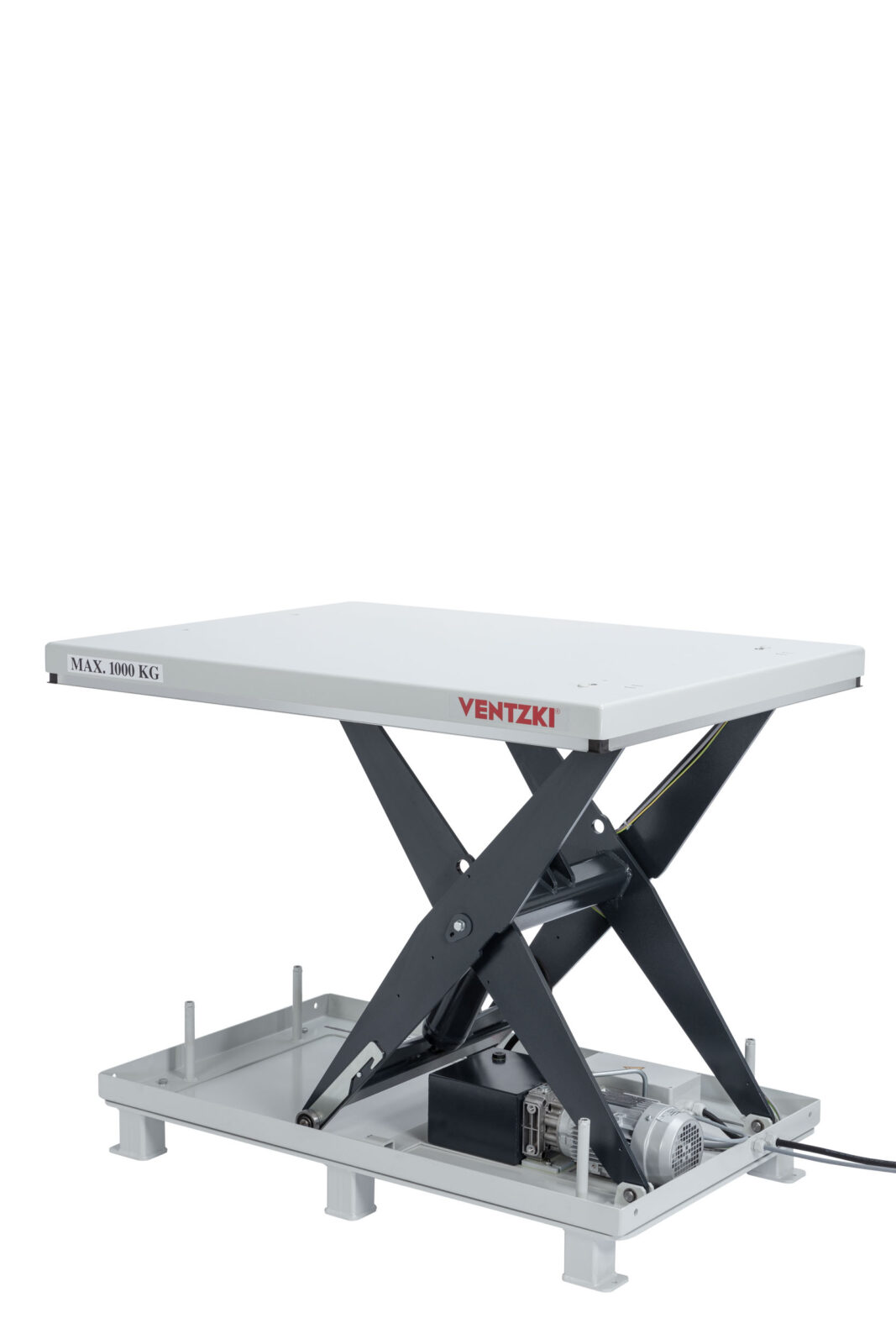

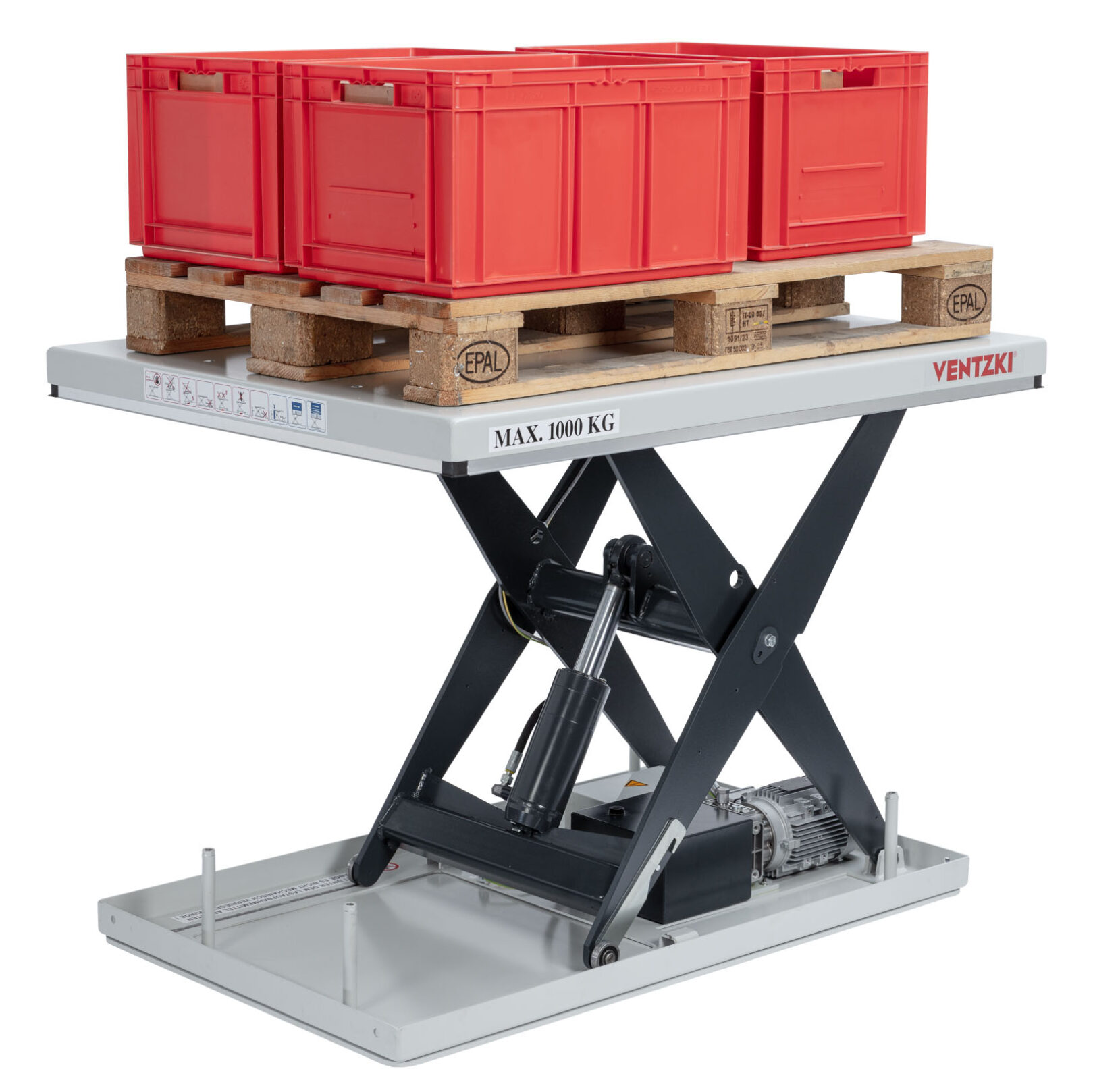

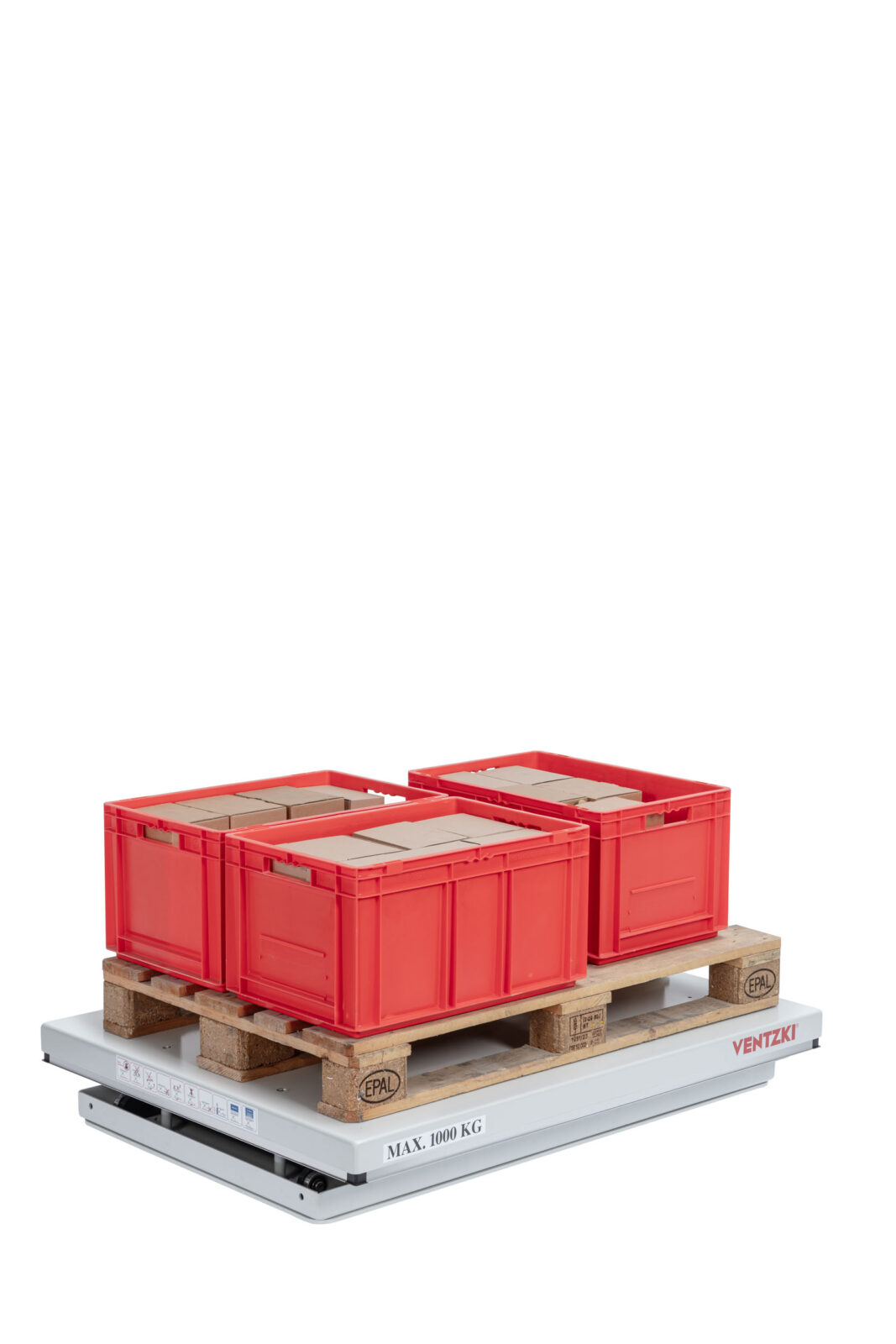

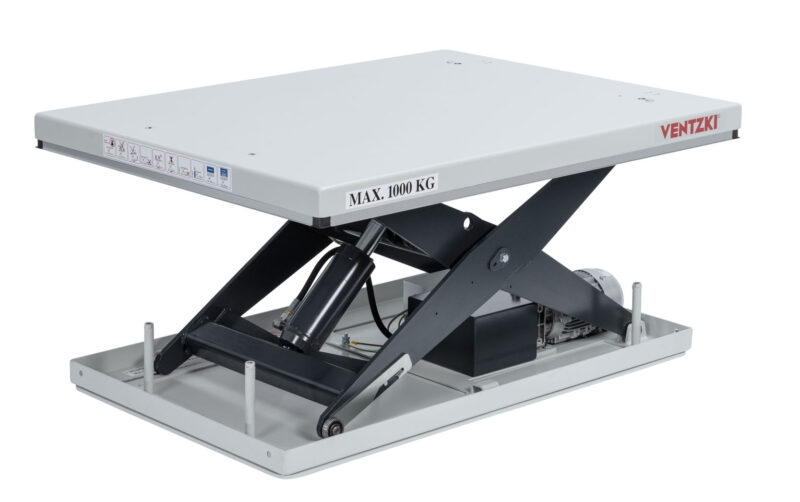

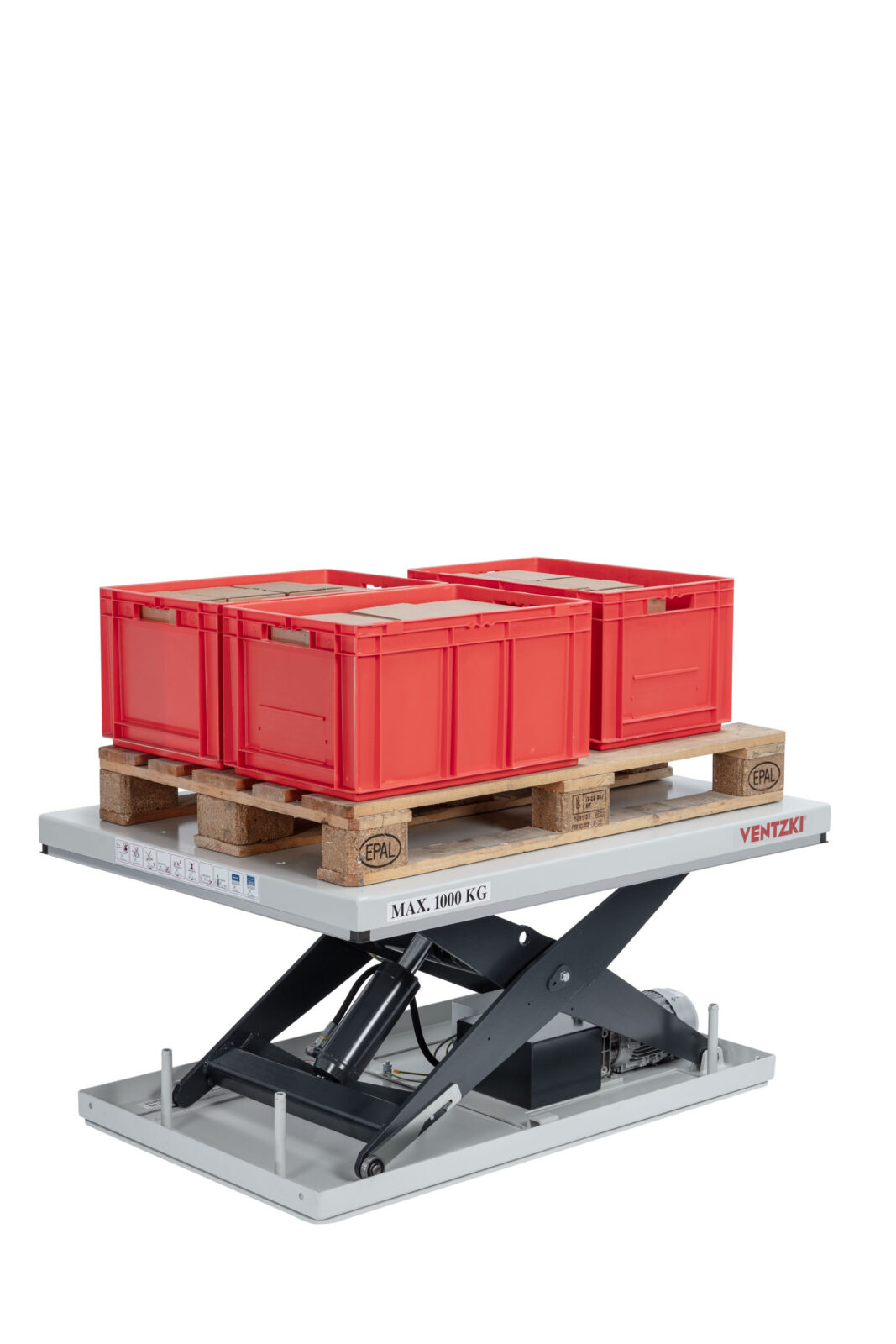

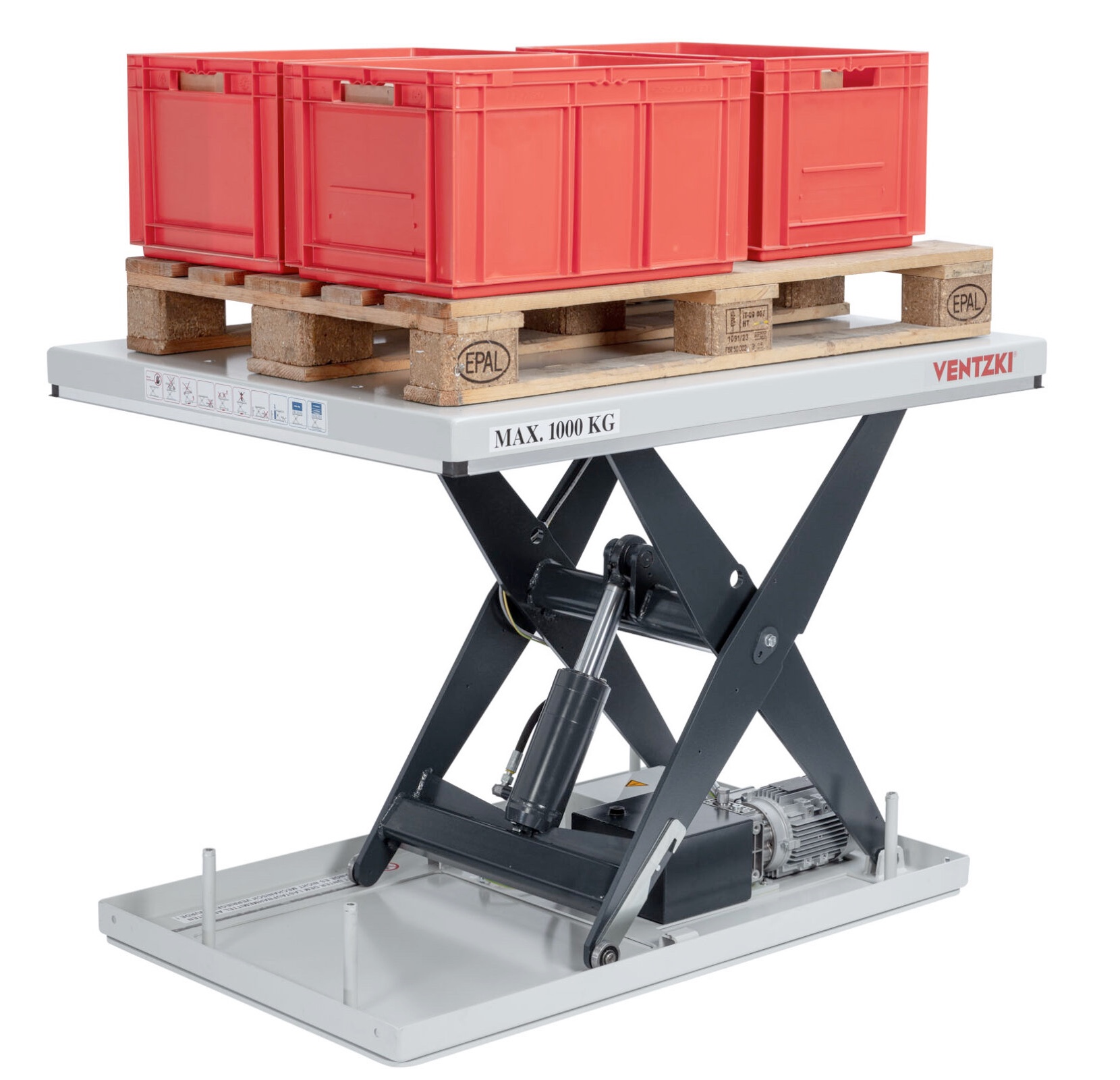

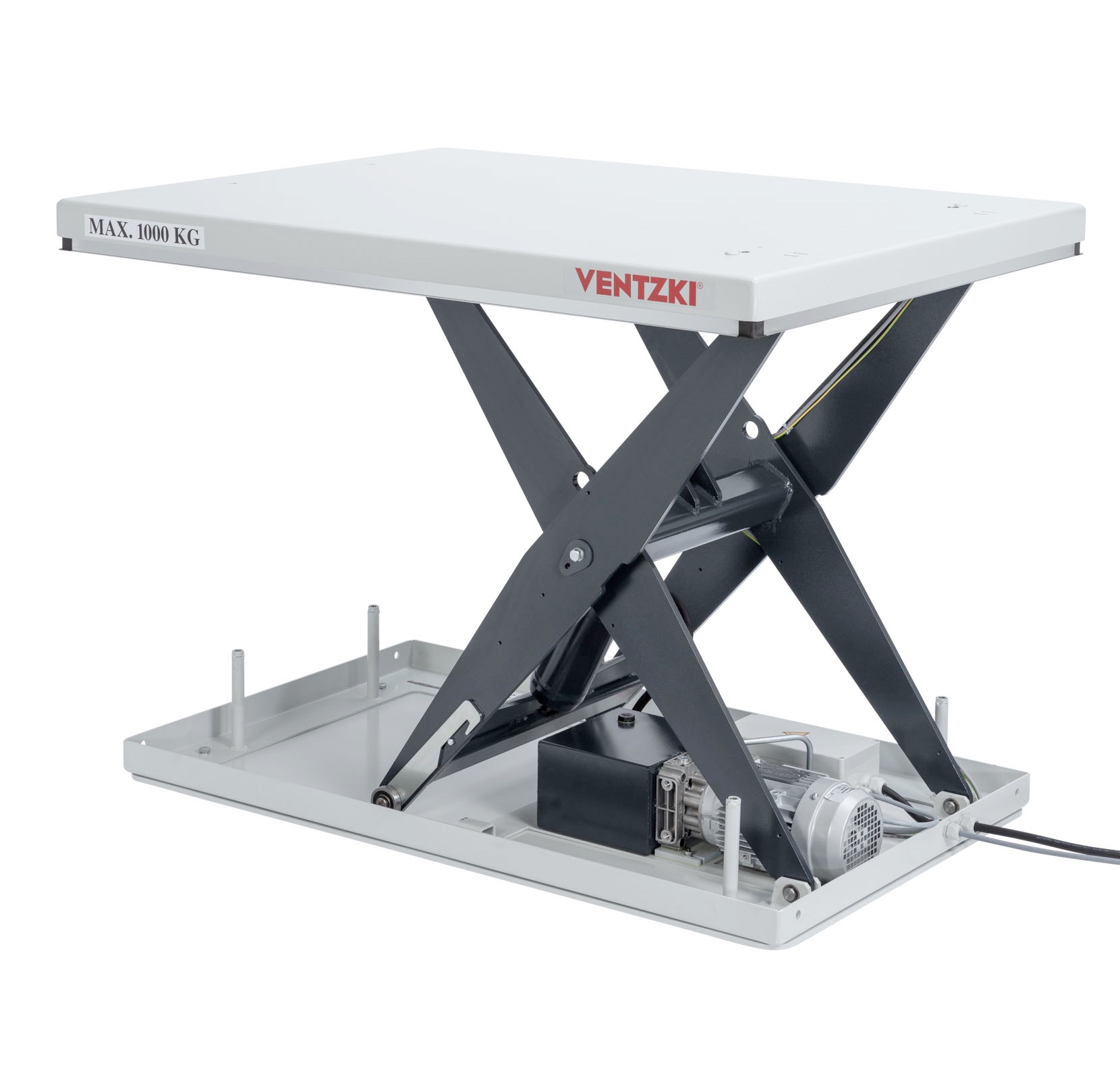

SHT-eco Scissor Lifting Tables

Product Highlights at a Glance

• Electro-hydraulic drive for lifting and lowering loads of up to 2,000 kg.
• Low-maintenance and trouble-free operation thanks to a robust design.
• High-quality powder coating (RAL 7035/7016).
• Complies with DIN EN 1570, current EU Machinery Directives, and accident prevention regulations.
• Optional: Pallet truck recess / base frame for ground clearance with electric hand pallet trucks or transport via forklift / pallet truck.

Safety Features

• All-around safety contact strip
• Hand control with emergency stop function (3 m cable)
• Pipe rupture valve in the cylinder
• Mechanical maintenance support
• Load-independent flow control valve

Fields of Application

• Ergonomic height adjustment at assembly workstations
• Efficient workflows in shipping and goods receiving
• Compensation of height differences in production lines

Important Information

• The SHT-eco models are available in standard sizes only
• Not suitable for continuous operation (more than 30 lifting cycles per day)
• Power requirements: 400 V / 50 Hz, 16 A, 5-pin (EN 60309-2)
• Higher load capacities or special dimensions available on request
